139 L Precision Linear Transducer
(Conductive Plastic, Up to 6000 mm Electric Stroke)

REC

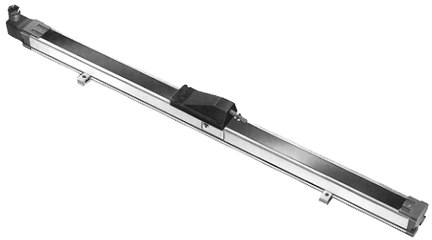

139 L Precision Linear Transducer

The 139 L is a robust industrial linear motion transducer with a side actuation,
ideally suited for applications with very long travels.

  • MEASUREMENT RANGE 25 mm to 6000 mm
  • HIGH ACCURACY ±1% down to ±0.025%
  • LONG LIFE
  • EXCELLENT REPEATABILITY
  • ESSENTIALLY INFINITE RESOLUTION
  • SIMPLE MOUNTING
  • ACTUATION TOLERANT TO SOME MISALIGNMENT
  • REDUCED BULK

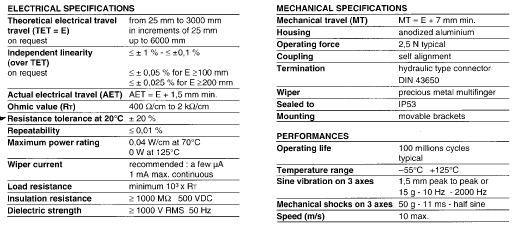

Electrical & Mechanical Specifications - Click To View Matching PDF

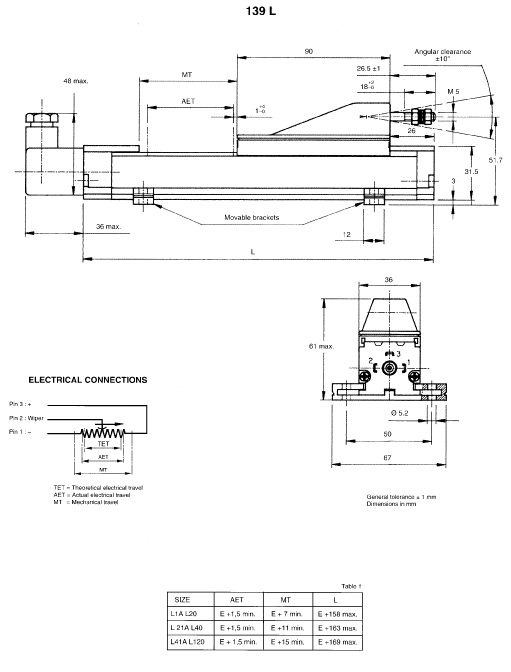

Dimensional Specifications - Click To View Matching PDF
