SF Precision Rotative Transducer
(Conductive Plastic, Servo Mounting)

ROT

  SF Precision Rotative Transducer

A complete range of servo mounting rotational transducers for applications requiring long life, accuracy and speed.

  • SIZE 08 to 30
  • LINEARITY ±1% down to ±0.015%
  • EXCELLENT REPEATABILITY
  • LONG LIFE
  • ESSENTIALLY INFINITE RESOLUTION
  • UP TO 6 ELECTRICAL FUNCTIONS WITH THE SAME SHAFT
  • ON REQUEST, CUSTOM DESIGN TO MEET YOUR SPECIFICATIONS

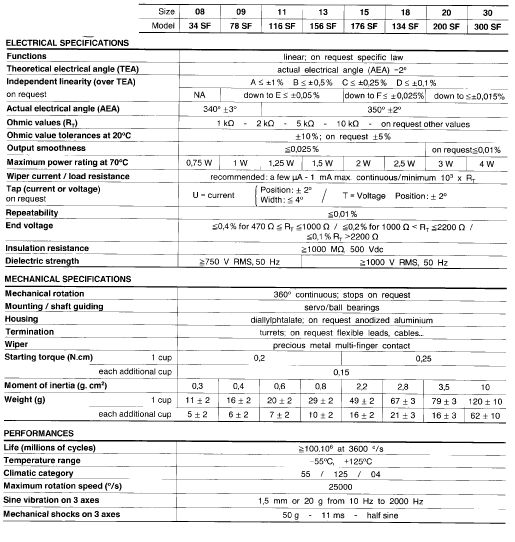

Electrical & Mechanical Specifications - Click To View Matching PDF

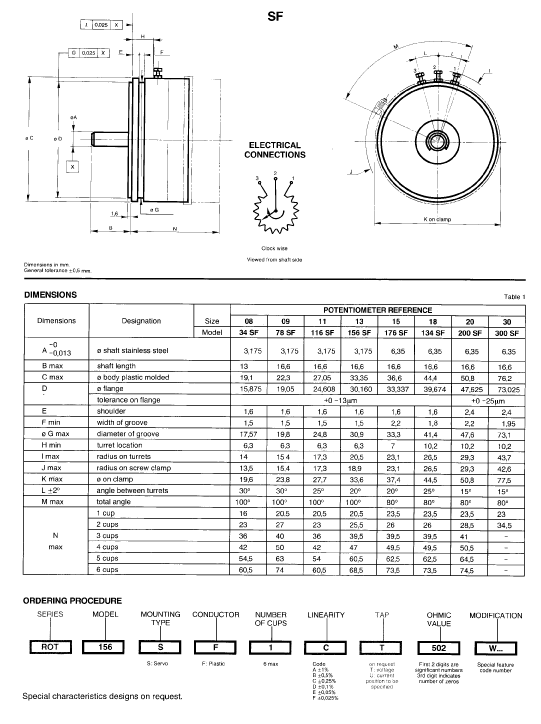

Dimension Specifications - Click To View Matching PDF

Single Turn Rotational Transducers
RMF Conductive Plastic Rotative Transducer | SF Precision Rotative Transducer | ES Precision Rotative Transducer
BF Precision Rotative Transducer | 116-200 BFZ-SFZ Precision Rotative Transducer Trigonometric Functions
ECO Precision Rotative Transducer | ECS Precision Rotative Transducer
